House on Swain’s Lane by Eldridge Smerin
London-based architects Eldridge Smerin have completed a house overlooking a cemetery in London, UK.
The four-storey house replaces one designed by architect John Winter in the 1970’s and uses the footprint of the original building.
The house has two distinct facades: the side facing the cemetery is mostly glazed, while the street-facing elevation is fabricated from black granite, translucent glass and black steel panels.
The roof features a large rooflight; glass floor panels admit light to the lower floors.
Photographs by Lyndon Douglas.
The following is from Eldridge Smerin:
House on Swain’s Lane London N6
Inspired by seeing Eldridge Smerin’s Stirling Prize shortlisted house The Lawns, on Highgate Hill in north London, the owner of a nearby house approached the practice about designing a new house on the same site.
The existing house dating from the 1970’s was designed by noted Architect John Winter and sat next to Highgate Cemetery, London’s greatest Victorian cemetery. Although the site offered spectacular views over the cemetery, Waterlow Park opposite and the city skyline beyond, replacing a John Winter house is a decision not taken lightly.
When Eldridge Smerin had investigated options for either retaining the corroding steel structure or for replacement, it was clear that to restore the Winter house would have required complete reconstruction and would have compromised the greater potential for a new house on such a unique site.
The resulting new house is located on the footprint of the existing house. It is set over four floors with a generous proportion of living to bedroom space including balconies, terraces and a sizable sliding glass rooflight enabling the top floor to become an open-air court. The new house is an additional storey higher than the previous one and is conceived with two strongly contrasting faces.

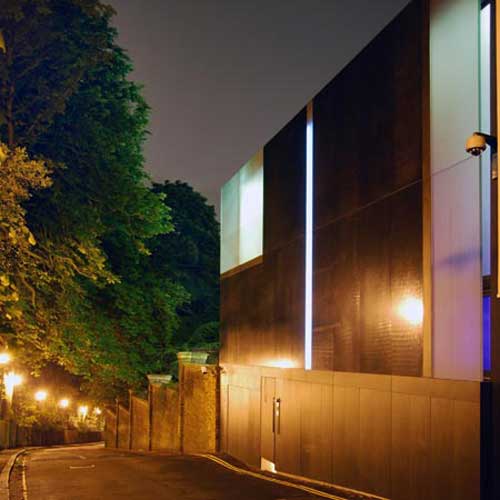

To the street a sheer façade of honed black granite, translucent glass and black steel panels set flush to one another echoes the massiveness of the cemetery wall. This gives the house an air of mystery and intrigue whilst also making reference to the monumental masonry of the cemetery.

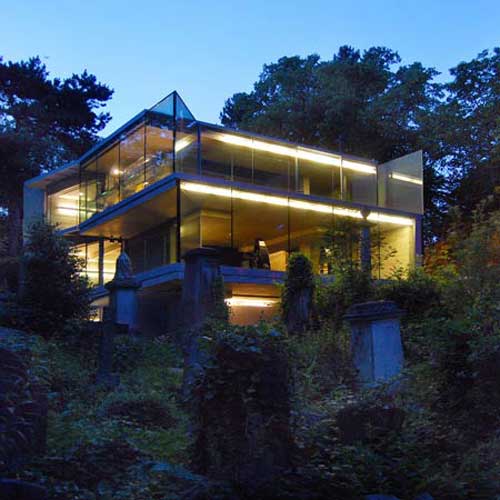

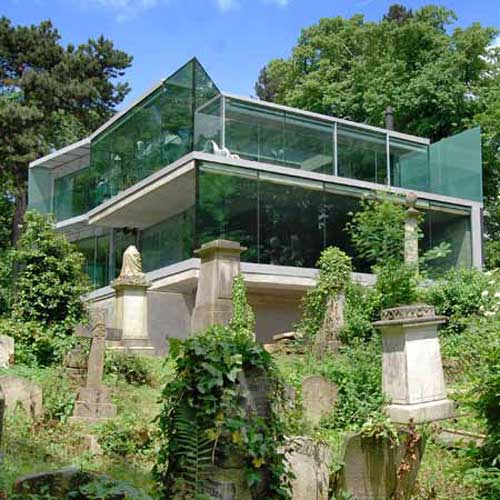

In contrast, the elevations facing the cemetery are largely glazed, suffusing the interior with natural light and washing the fair-faced concrete structural frame and walls with sunlight.

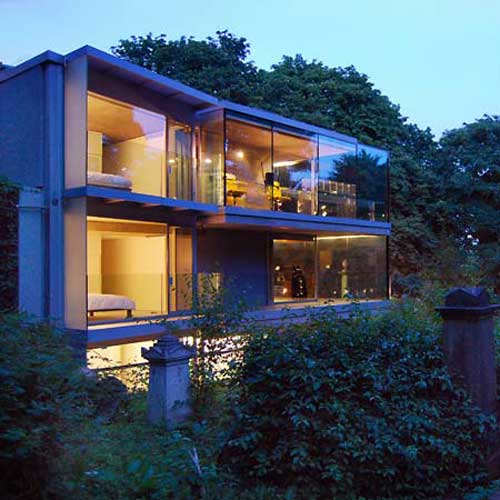

Unlike the lower part of the cemetery where people often go to see Karl Marx’s grave, the upper part where the house is located is overgrown and largely unvisited allowing it to act as a stunning backdrop for the spaces within the house. The full height glazing to the perimeter of the house was enabled by the use of flat concrete slabs with long cantilevers back to the four central columns supporting each floor. The concrete supporting internal and external areas was kept separate to provide a thermal break between inside and out.
In contrast to the smooth fair-faced finish of the concrete columns and soffits and the smooth stone flooring, the concrete walls facing the street and adjoining property to the north have a strong horizontal pattern from the timber boards used to shutter the concrete.
The use of a concrete frame with a high quality exposed finish internally also allows a more sustainable environmental strategy for the house to be developed than the lightweight construction of the original house allowed.
The intention was to produce a house with significantly lower energy usage than the original even with an increased floor area. The slow heat response characteristics of the concrete allow the frame to act as an environmental modifier slowing down heat gain in summer and limiting heat loss in winter whilst the form of the house with large glazed openings facing south allow passive solar gain to be maximised during winter months.
The use of stone cladding and a green sedum roof system similarly help control temperature fluctuations. The use of concrete as a structure and finish, when sourced from a local plant that uses a proportion of recycled material, helps minimise the embodied energy in the envelope of the house as does the choice of generally natural materials for the internal finishes.
Internally a low temperature hot water underfloor heating system is used in conjunction with the thermal mass of the house to maintain comfortable conditions with minimised energy usage. The high natural light levels mean there is little need for artificial lighting during daylight hours whilst all light fittings use low energy lamps.

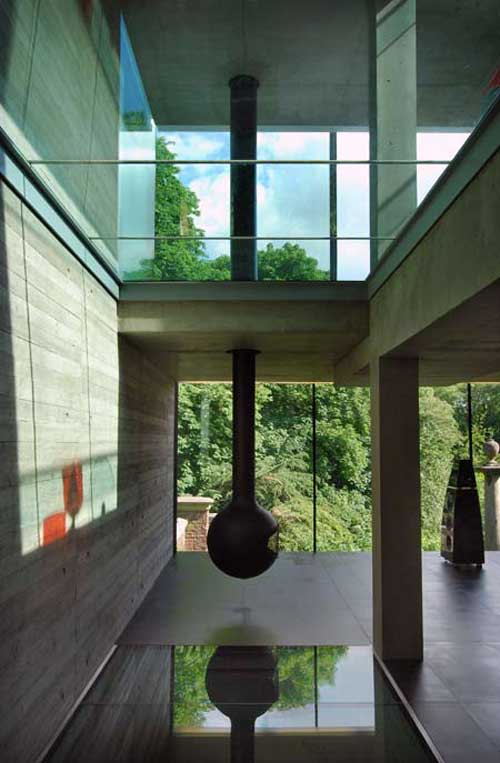

The interior spaces are linked vertically by a series of large areas of clear glass floor panels which filter daylight from the main sliding rooflight down to the entrance area off the street. Full height frameless pivoted doors veneered in bog aged oak separate the living spaces and bedrooms from the main stair.
The stair itself has pre-cast concrete treads cantilevered from the concrete walls each side with a clear glass fin to the centre supporting a stainless steel handrail which is resin bonded to the glass. The fin is formed from two four metre high sheets of toughened laminated glass which were craned into position through a slot created in the roof slab.
Bathrooms on each floor are lined with white corian and have white marble floors. Eldridge Smerin were also responsible for designing bespoke joinery and furniture throughout the house. Built-in storage is generally in timber behind white lacquered doors but the Music Room on the first floor has a wall of storage units in high gloss black lacquer and side tables in bog aged oak. The second floor Study features a continuous worksurface formed from and supported by clear frameless toughed glass sheets bonded together.
Prior to work starting on site John Winter was philosophical about the demolition of the house he had designed, saying that there would be no hard feelings ’so long as the new house was better’. Reviewing the completed house for Architecture Today magazine John Winter was generous enough to say he felt the new house was both better and ‘as near to a faultless building as I have seen for a long time’.
Architect: Eldridge Smerin ( Nick Eldridge, Piers Smerin, George Dawes, Alison Poole, Amalia Skoufoglou )
